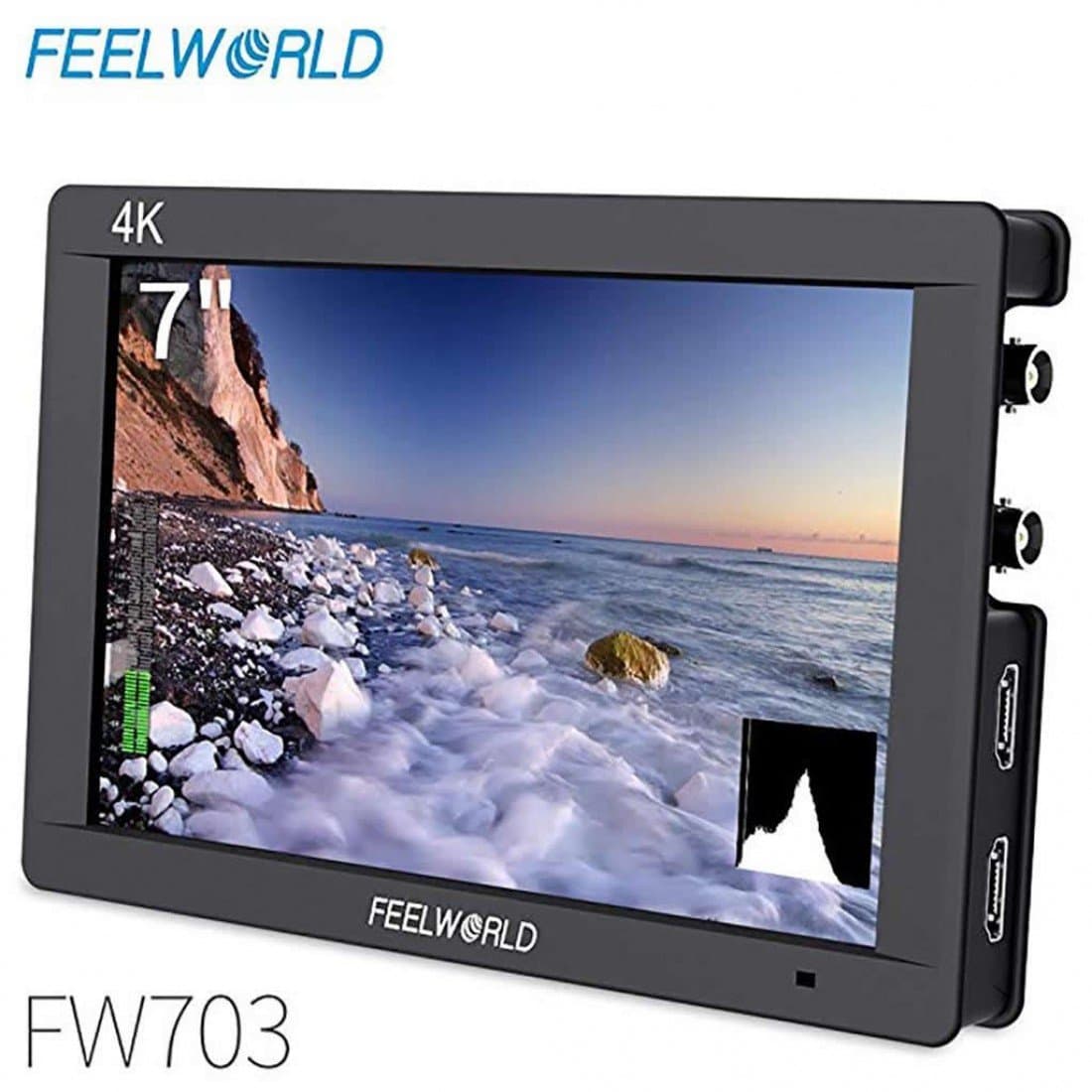

Feelworld FW703 7 inch Camera Field Monitor with HDMI and SDI
Product Highlights
Overview

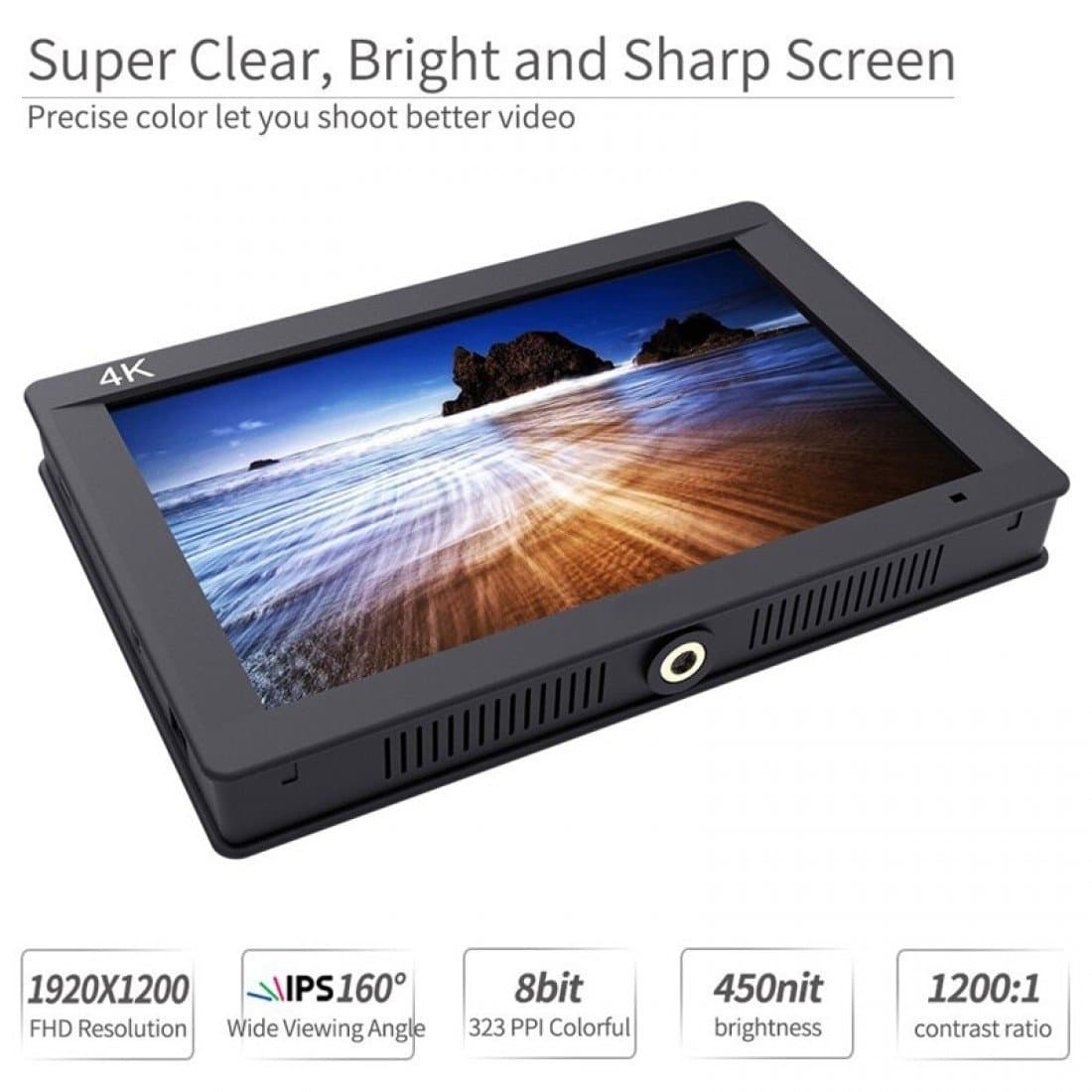

FW703 7 inch Field Monitor from Feelworld is a 3G-SDI 4K HDMI professional camera monitor with Full HD 1920 x 1200 resolution, 323 ppi density, high brightness, high contrast and a wide viewing angle (160°) that allows for multiple members of the crew to watch the screen at the same time. It’s small size makes it portable. It is lightweight too at 320g with an ultra-thin design of 0.87 inch thickness; easy to hold in your hands. The monitor has a color calibration technology and Rec.709 HD professional color standard. This makes it possible to achieve monitor calibration efficiently and get accurate color reproduction easily without distorting color and showing the real pictures on a shoot. Other features that a user acquires include peaking, zoom, anamorphic mode, markers, and image flip. It is suitably designed for film making and video shooting.
Compatible Batteries
Sony F530, F550, F570, F730, F750, F770, F930, F950, F960, F970, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.
Note: (Battery is bought separately)
Specifications
Input Output
1 x BNC3G-SDI 1 x BNC3G-SDI
1 x HDMIHDMI 1 X HDMIHDMI
Audio
– AudioStereo Headphone, Speaker
SDI Format
– 480i/576i
– 720p (60/59.94/50/30/29/25/24/23.98)
– 1080i (60/59.94/50)
– 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HDMI Input/ Output Format
– 480i/576i/480p/576p
– 1080i (60/59.94/50)
– 720p (60/59.94/50/30/29/25/24/23.98)
– 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
– 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
Install Way: 1/4″-20 Thread Socket (bottom)
Input Voltage: DC6.5~24V
Power Consumption: ≤9W

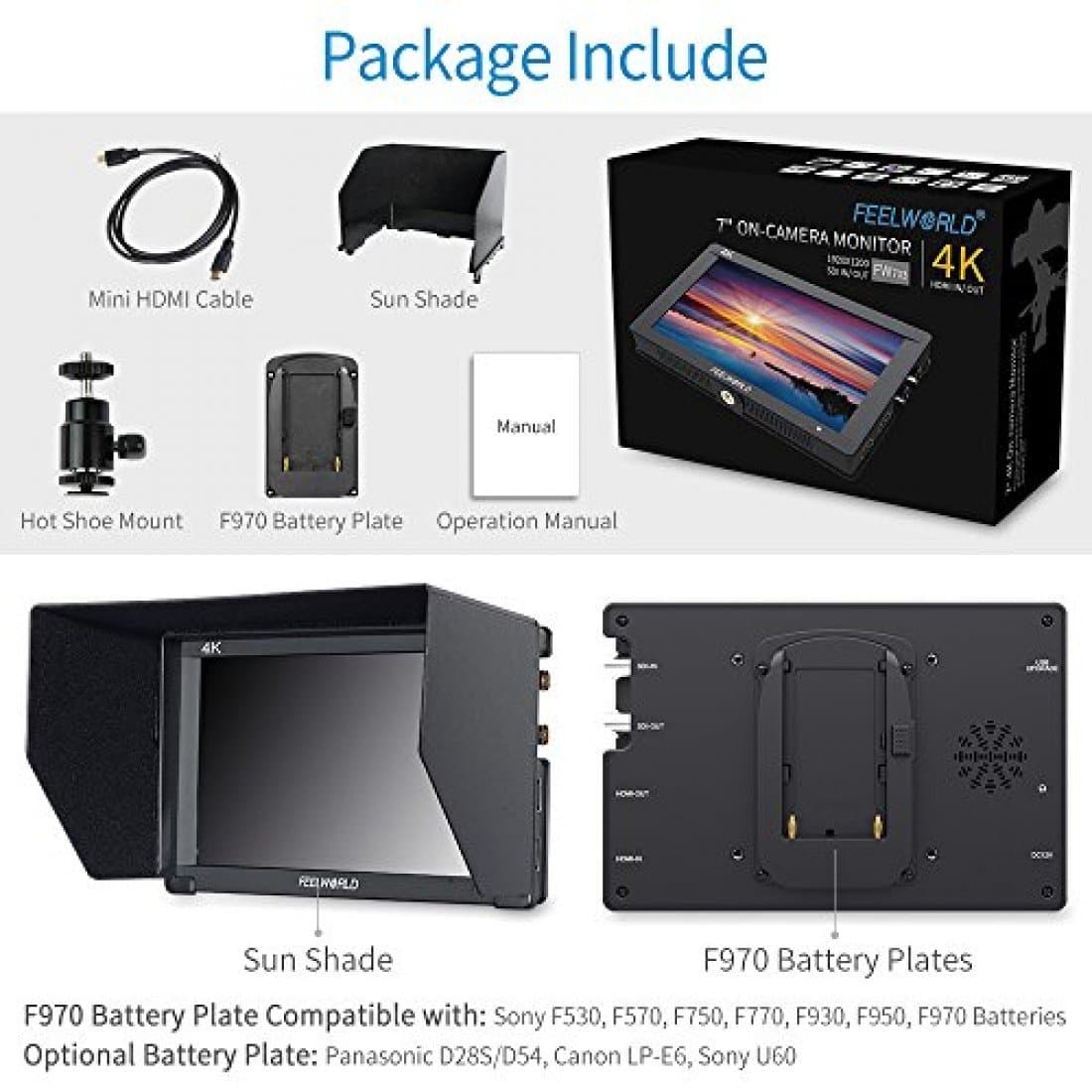

Included in the package
