Description
Indoor high fidelity speaker, fully enclosed structure, iron flame retardant protective rear cover, multiple power constant pressure and constant resistance selection. Fix the presser foot system with screws. Applicable to hotels,clubs, shopping malls etc.
Specification：
Model
T-206CW
Power taps(100V)
3.8W, 7.5W, 15W, 30W
Power taps(70V)
1.9W, 3.8W, 7.5W, 15W, 30W
Impedance
2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω
Input
70V/100V/8Ω
SPL（1W/1M）
89dB ±3dB
Frequency response（-10dB）
80-20KHz
Speaker driver
6&#8243;×1 1.5&#8243;×1
Cutout size
208mm
Dimensions
241×165mm
Weight
1.6Kg

T-206CW Ceiling Speaker

Music& Accessories Hub

Description
Indoor high-fidelity speakers, fully enclosed structure, iron flame retardant unit to protect the back cover, multi-power constant voltage and constant resistance options. Screw fixing presser foot system. Applicable to hotel,clubs, shopping malls, etc.
Specification：
Model
T-205CW
Rated power (100V)
2.5W, 5W, 10W, 20W
Rated power (70V)
1.25W, 2.5W, 5W, 10W, 20W
Impedance
4KΩ/2KΩ/1KΩ/500Ω/250Ω
Input voltage
70V/100V/8Ω
Sensitivity (1W/1mM)
88dB±3dB
Frequency response (-10dB)
80Hz-20kHz
Speaker unit
5&#8243; woofer x 1, 1.5&#8243; tweeter x 1
Opening size
180mm
Dimension
215*152mm (H×W×D)
Weight
1.4kg

T-205CW Ceiling Speaker

Description
The T-208P is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers. The built-in 6.5+1.5 coaxial speaker driver is designed of wide frequency response 100-18kHz, and its various power output from 6W, 12W, 25W &#038; 50W could meet different room size applications. The power taps is convenient to switch the input from 100V to 70V or 8?, thus this speaker support both high impedance input and low impedance input use. The metal grille, ABS baffle and ABS back cover are painted in attractive white color. Its flush mount type makes the easy and secure installation. It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Features
Built-in 100v/70v transformer
In-ceiling type loudspeaker
6.5 +1.5 coaxial speaker unit
Built-in crossover for hi-fi use
Metal grille, ABS baffle &#038; ABS back cover
Specifications
Brand: ITC
Model: T-208P
Part: 5194788000000177112
Power taps @100V: 6W, 12.5W, 25W, 50W
Rated power (70V): 3W, 6W, 12.5W, 25W, 50W
Input: 100V/70V/8?
Impedance: Black: Com Red: 4K?/2K?/1K?/500?/240?
Sensitivity (1W/1M): 400?/200?/100?
Maximum sensitivity (W/1M): 90dB
Frequency response (-10dB): 107dB
Speaker unit: 80-20KHz
Speaker driver: 6&#8243; x 1 + 1.5&#8243; x 1
Cutout size: 250mm
Dimensions: 280 × 190mm
Weight: 2.8Kg

ITC – 6″+1.5″ Coaxial Ceiling speaker with ABS Cover, 6W-12.5W-25W-50W – T-208P

Description
 Indoor high-end ceiling speakers, plastic flame-retardant rear cover, screw-fixed presser foot system; vent holes enable perfect sound reproduction; suitable for hotels, clubs, etc.
Specification：
Model
T-206P
Rated power (100V)
3.75W, 7.5W, 15W, 30W
Rated power (70V)
1.9W, 3.75W, 7.5W, 15W, 30W
Input
100V/70V/8Ω
Impedance
Black: Com Red: 2.7KΩ/1.3KΩ/670Ω/330Ω/165Ω
Sensitivity (1W/1M)
89dB
Maximum sensitivity (W/1M)
106dB
Frequency response (-10dB)
80-20KHz
Speaker unit
5&#8243;×1 1.5&#8243;×1
Installation cutout size
210mm
Size
240×155mm
Weight
2.1Kg

T-206P Ceiling Speaker (3.75W-7.5W-15W-30W)

Description
 Indoor high-end ceiling speakers, plastic flame-retardant rear cover, screw-fixed presser foot system; vent holes enable perfect sound reproduction; suitable for hotels, clubs, etc.
Specification：
Model
T-205P
Rated power (100V)
2.5W, 5W, 10W, 20W
Rated power (70V)
1.25W, 2.5W, 5W, 10W, 20W
Input
100V/70V/8Ω
Impedance
Black: Com Red: 4KΩ/2KΩ/1KΩ/500Ω/240Ω
Sensitivity (1W/1M)
88dB
Maximum sensitivity (W/1M)
101dB
Frequency response (-10dB)
80-20KHz
Speaker unit
4&#8243;×1 1.5&#8243;×1
Installation cutout size
180mm
Size
213×135mm
Weight
1.9Kg

T-205P Ceiling Speaker (2.5W-5W-10W-20W)

Description
Indoor high-grade ceiling speakers, plastic flame retardant unit to protect the back cover. Fix the presser foot system with screws. With vent design, perfect reproduction of sound. Applicable to: hotels, hotels, clubs, etc.
Specification:
Model
T-208
Power taps(100V)
40W
Power taps(70V)
20W
Impedance
Black: Com Red: 250Ω
SPL（1W/1M）
92dB ±3dB
Frequency response（-10dB）
80-20KHz
Speaker driver
6.5&#8243;×1 1.5&#8243;×1
Cutout size
250mm
Dimensions
280×190mm
Weight
2.7Kg

T-208 Ceiling Speaker

Description
The T-206P is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5”+1.5” coaxial speaker driver is designed of wide frequency response 100-18kHz, and its various power output from 3.75W, 7.5W, 15W &#038; 30W could meet different room size applications. The power taps is convenient to switch the input from 100V to 70V or 8Ω, thus this speaker support both high impedance input and low impedance input use. The metal grille, ABS baffle and ABS back cover are painted in attractive white color. Its flush mount type makes the easy and secure installation.
Features
Built-in 100v/70v transformer
In-ceiling type loudspeaker
5” +1.5” coaxial speaker unit
Power output 3.75W, 7.5W, 15W &#038; 30W @100V
Built-in crossover for hi-fi use
Line input: 100V, 70V or 8Ω
Metal grille, ABS baffle &#038; ABS back cover
Paint in white color
Secure flush mount installation

T-206P 5 Inch Coaxial Ceiling Loudspeaker

Description
The T-205 is a coaxial ceiling speaker built-in 70 / 100V transformer. The 70 / 100V transformer technology reduces line losses over longer distances and allows for easy parallel connection of multiple speakers. The built-in 4 &#8220;+5.5&#8221; driver driver is designed to 100Hz wide frequency response at 20kHz output power and rated is 20W.The metal grille, ABS baffle and rear ABS cover are painted in color Attractive white Its flush mounting style makes installation easy and secure.It is the ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and pagination is needed.
Characteristics
&#8211; High-100 / 70V transformer
&#8211; Ceiling speaker type
&#8211; 4 &#8220;1.5&#8221; coaxial speaker unit
&#8211; RMS power 20W to 100V
Specifications
&#8211; Metal grille, ABS baffle and ABS back cover
&#8211; Fix the flush installation
&#8211; The ideal choice for industrial and commercial applications in hotel, school, office and factory

ITC - T-205, Passive Ceiling Coaxial Speaker, 20W / 100V 4 "Power

Description
 Model
T-206T
Power taps(100V)
2.5W,5W,10W,20W
Power taps(70V)
1.25W,2.5W,5W,10W
Impedance
Black: Com Blue: 4KΩ Red:2KΩ
Green:1KΩ White: 500Ω
SPL（1W/1M）
92dB
Frequency response（-10dB）
70-20KHz
Speaker driver
6.5&#8243; x 1 1.5&#8243; x 1
Cutout size
208mm
Dimensions
232 x 90mm
Weight
1.3Kg

T-206T Ceiling Speaker (No-frame Speaker) (2.5W-5W-10W-20W)

Description
Model
T-205T
Rated power (100V)
1.25W, 2.5W, 5W, 10W
Rated power(70V)
0.65W, 1.25W, 2.5W, 5W
Impedance
Black: Com Blue: 8KΩ Red: 4KΩ
Green: 2KΩ White: 1KΩ
SP;(1W/1M)
91dB
Frequency response (-10dB)
80-20KHz
Speaker unit
5&#8243; x 1 1.5&#8243; x 1
Cutout size
178mm
Dimension
205 x 72mm
Weight
0.9Kg

T-205T Ceiling Speaker (No-frame Speaker) (1.25W-2.5W-5W-10W)

Description
8&#8243; ceiling speaker,
1.87W-3.75W-7.5W-15W,
100V, cutout 244mm,
ABS baffle &#038; metal
grille

T-208BC Ceiling speaker

Description
Round plastic basin stand, coaxial high-pitched design, multi-power selection, clear and bright sound.With screw fixed presser foot design, can be installed on the ceiling of different thickness. Applicable to hotel, shopping mall, supermarket, etc.
Specification:
Model
T-206B
Power taps(100V)
1.25W, 2.5W, 5W, 10W
Power taps(70V)
0.62W, 1.25W, 2.5W, 5W
Impedance
:Black:Com Blue:8KΩ Red:4KΩ
:Green:2KΩ White:1KΩ
SPL(1W/1M)
89dB
Frequency response (-10dB)
80-20KHz
Speaker driver
6&#8243; ×1 1.5&#8243; ×1
Cutout size
208mm
Dimensions
240 ×78mm
Weight
1Kg

T-206B Ceiling Speaker(Coaxial Speaker) (1.25W-2.5W-5W-10W)

Description
. Built-in 100v/70v transformer
. Good sound quality speaker for music &#038; speech
. In-ceiling type loudspeaker
. 5” dual cone paper speaker unit
. Power taps 0.75W, 1.5W, 3W &#038; 6W @100V
. Metal grille &#038; ABS baffle
. Paint in white color
. Flush mount easy &#038; secure installation
The T-205BC is a ceiling speaker built-in 70v/100v transformer. The
70v/100v transformer technique reduces line losses on longer distance
and allows easy parallel connection of multiple loudspeakers.
The built-in 5” dual cone paper speaker driver is designed of wide frequency response 80-20kHz, the multiple power
taps 0.75W, 1.5W, 3W &#038; 6W are helpful for different applications varies from room size and ambient noise
surroundings. The metal grille and ABS baffle are painted in attractive white color. Its flush mount type makes the easy
and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music
and paging is needed.

T-205BC Ceiling Speaker(0.75W-1.5W-3W-6W)

Description
Round plastic shell , coaxial high-pitched design, multi-power selection; The sound is clear and bright; With screw fixed presser foot design, can be installed on the ceiling of different thickness. Applicable to hotels, shopping malls, supermarkets, etc.
Specification：
Model
T-208B
Power taps(100V)
1.87W, 3.75W, 7.5W, 15W
Power taps(70V)
0.93W, 1.87W, 3.75W, 7.5W
Impedance
Black:Com Blue:5.3KΩ Red:2.6KΩ
Green:1.3KΩ White:670Ω
SPL（1W/1M）
90dB
Frequency response（-10dB）
80-20KHz
Speaker driver
8&#8243; ×1 1.5&#8243; ×1
Cutout size
245mm
Dimensions
280 ×80mm
Weight
1.5Kg

T-208B Ceiling Speaker (Coaxial Speaker) (1.87W-3.75W-7.5W-15W)

Description
Round plastic basin frame, coaxial high-pitched design, multi-power selection. The sound is clear and bright. With screw fixed presser foot design, can be installed on the ceiling of different thickness. Applicable to hotels, shopping malls, supermarkets, etc.
Specification：
Model
T-205B
Power taps @100V
0.75W, 1.5W, 3W, 6W
Power taps @70V
0.38W, 0.75W, 1.5W, 3W
Impedance
:Black: Com Blue: 13.3KΩ Red: 6.7KΩ
:Green: 3.3KΩ White: 1.7KΩ
SPL(1W/1M)
88dB
Frequency response (-10dB)
80-20KHz
Speaker driver
5&#8243; x 1 1.5&#8243; x 1
Cutout size
180mm
Dimensions
215 x 75mm
Weight
0.6Kg

T-205B Ceiling Speaker(Coaxial Speaker) (0.75W-1.5W-3W-6W)

Description
Model:T-208A
Power taps @100V: 3.75W, 7.5W, 15W,30W
Power taps @70V:3.75W, 7.5W, 15W.
Impedance:
:Black:
:Com Blue: 8KΩ Red: 4KΩ
:Green: 1KΩ White: 1KΩ
SPL(1W/1M):94dB
Max. SPL (Rated W/1M):109dB
Frequency response (-10dB):60-20KHz
Finish:Baffle: ABS, White Grille: Steel, White
Speaker driver:8&#8243; x 1 1.5&#8243; x 1
Cutout size:245mm
Dimensions:280 x 80mm
Weight:1.6Kg
Mounting:Flush-mount dog ears

Ceiling Speaker (Coaxial Speaker) T-208A

Description
Model:T-206A
Power taps @100V: 2.5W, 5W, 10W,20W
Power taps @70V:1.25W, 2.5W, 5W, 10W
Impedance:
:Black:
:Com Blue: 8KΩ Red: 4KΩ
:Green: 1KΩ White: 1KΩ
SPL(1W/1M):92dB
Max. SPL (Rated W/1M):105dB
Frequency response (-10dB):70-20KHz
Finish:Baffle: ABS, White Grille: Steel, White
Speaker driver:6&#8243; x 1 1.5&#8243; x 1
Cutout size:208mm
Dimensions:240 x 78mm
Weight:1.2Kg
Mounting:Flush-mount dog ears

Ceiling Speaker (Coaxial Speaker)T-206A

Description
Model:T-205A
Power taps @100V:1.25W, 2.5W, 5W, 10W
Power taps @70V:0.65W, 1.25W, 2.5W, 5W
Impedance:
:Black:
:Com Blue: 8KΩ Red: 4KΩ
:Green: 2KΩ White: 1KΩSPL(1W/1M):89dB
Max. SPL (Rated W/1M):99dB
Frequency response (-10dB):80-20KHz
Finish:Baffle: ABS, White Grille: Steel, White
Speaker driver:5&#8243; x 1 1.5&#8243; x 1
Cutout size:180mm
Dimensions:215 x 75mm
Weight:0.8Kg
Mounting:Flush-mount dog ears

Ceiling Speaker (Coaxial Speaker) T-205A

Description
High quality ceiling, 4 inch speaker unit, white paint. Waterproof unit with iron rear cover. Applicable to hotels, clubs, etc.
Specification:
Model:T-104GK
Power taps @100V:3W, 6W
Power taps @70V:1.5W, 3W
Impedance:Black: Com White: 3.3KΩ Red: 1.7KΩ
SPL(1W/1M):90dB
Frequency response (-10dB):80-20KHz
IP rate:IP66
Speaker driver:4&#8243; x 1
Cutout size:110mm
Dimensions:135 x 107mm
Weight0.7Kg

T-104GK Ceiling Speaker (4”, 3W-6W)

Description
The T-104GD is a mini water-resistant ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4&#8243; water-resistant speaker driver is designed of wide frequency response 90-18kHz, the multiple power taps 3W &amp; 6W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and metal baffle are painted in attractive white color. Its spring clamp makes the easy and secure installation.
Technical data
Power:6W
Frequency Response:90Hz &#8211; 18kHz
SPL:90dB
Voltage:70/100V
Dimensions:135x85mm
Cutout: Size110mm
Weight:0.6kg

T-104GD mini water-resistant ceiling speaker

Description
. Indoor ceiling speaker, elegant appearance design, using metal shell and iron mesh.
. Using a 3-inch small-diameter speaker unit, the white paint process can better integrate with the environment.
. Movable spring clip design, easy and quick to install.
Specification:
Power taps @100V:3W, 6W
Power taps @70V:1.5W, 3W
Sensitivity:89dB ±3dB
Maximum SPL:97dB ±3dB
Impedance:Black:Com White:3.3KΩ Red:1.7KΩ
Frequency response (-10dB):80Hz-20kHz
Speaker driver:3&#8243; x 1
Cutout size:80mm
Dimensions:102×75mm
Weight:0.4kg

T-103G Ceiling Speaker (3W-6W)

Description
Small caliber indoor ceiling speaker, using 3 inch full frequency high-quality speaker unit, high-grade and beautiful appearance, movable clip design, easy to install.
Specification：
Model:T-103C
Power taps @100V:3W, 6W
Power taps @70V:1.5W, 3W
Impedance:Black:Com White:3.3KΩ Red:1.7KΩ
SPL(1W/1M):88dB
Frequency response (-10dB):80-20KHz
Speaker driver:3&#8243; x 1
Cutout size:95mm
Dimensions:104 x 78mm
Weight:0.5Kg

T-103C Mini Ceiling Speaker (3W-6W)

Description
.High-quality ceiling speaker, plastic pot frame, metal mesh cover, spring pressing system, easy to install.
. Full frequency unit design, enjoy the extraordinary experience of both music and human voice, experience the clear reproduction of human voice and the smooth response of background music.
. The high-performance copper wire audio transformer is used to reduce the loss caused by impedance in the circuit.
. Suitable for hotels, hotels, clubs, etc.
Specification:
Power taps @100V:3W, 6W
Power taps @70V:1.5W, 3W
Impedance:Black: COM/Red: 3.3KΩ/White: 1.67KΩ
Sensitivity (1W/1M):88dB ±3dB
Maximum SPL:96dB ±3dB
Frequency response (-10dB):80Hz-20kHz
Speaker driver:5&#8243;×1
Cutout size:155mm
Dimensions:175×68mm
Weight:0.4kg

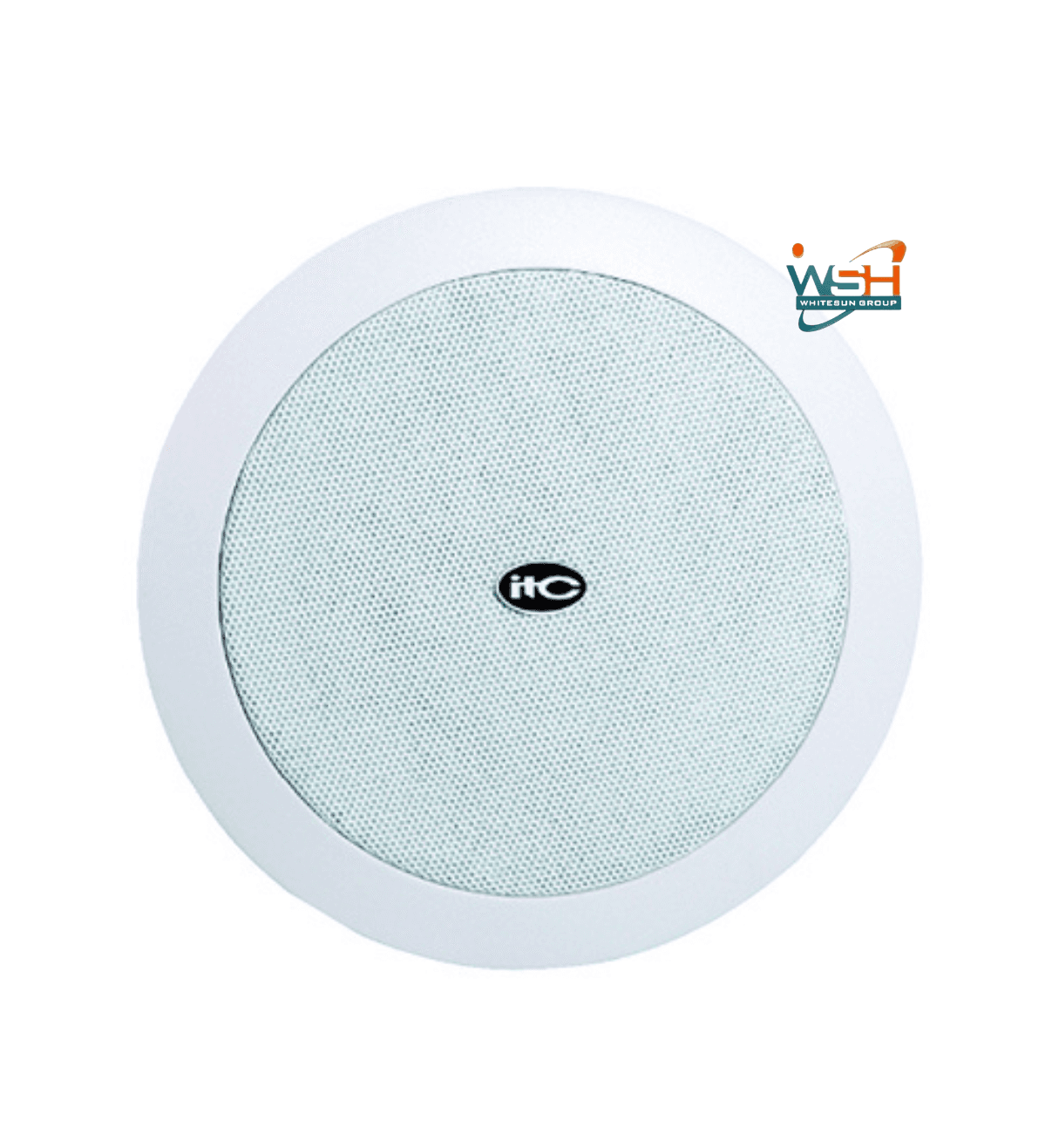

T-105YK Ceiling Speaker

Description
High quality ceiling speaker, plastic basin frame, spring pressing system, convenient installation. It is suitable for hotels, hotels, clubs and so on.
Specification：
Model:T-105M
Power taps @100V:1.5W, 3W, 6W
Power taps @70V:0.975W, 1.5W, 3W
Impedance:Black: Com Red:6KΩ Green:3.3KΩ Blue:1.3KΩ
SPL (Rated W/1M):88dB
Frequency response (-10dB):80-20KHz
Finish;
:Cover: Steel, White Grille: Steel, White
Speaker driver:5&#8243;×1
Cutout size:170mm
Dimensions:200 x 100mm
Weight:1kg

T-105M Ceiling Speaker( 1.5W-3W-6W)

Description
High quality ceiling speaker, full frequency speaker design, spring foot system, easy to install. Suitable for shopping malls, hotels, etc.
Specification：
Model:T-108L
Power taps @100V:1.87W, 3.75W, 7.5W, 15W
Power taps @70V:0.93W, 1.87W, 3.75W, 7.5W
Impedance:90dB
SPL(1W/1M);
:Black: COM
:Blue:5.3KΩ
:Red:2.7KΩ
:Green:1.3KΩ
:White:0.67KΩ
Frequency response (-10dB):80-20KHz
Speaker driver:8&#8243; x 1 1&#8243; x 1
Cutout size:230mm
Dimensions:265 x 75mm
Weight:1.2Kg

T-108L Ceiling Speaker （ Coaxial Speaker ） (1.87W 3.75W 7.5W 15W)

Description
High quality ceiling speaker, full frequency speaker design, spring foot system, easy to install. Suitable for shopping malls, hotels, etc.
Specification：
Model:T-105L
Power taps @100V:1.5W, 3W, 6W
Power taps @70V:0.75W, 1.5W, 3W
Impedance
:Black: Com Red:6.7Ω
:Green:3.3KΩ White:1.7KΩ
SPL(1W/1M):88dB±3dB
Frequency response (-10dB):80-20KHz
Speaker driver:6&#8243; x 1
Cutout size:170mm
Dimensions:200 x 65mm
Weight:0.9Kg

T-105L Ceiling Speaker( 1.5W-3W-6W)

Description
The T-10 5F is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5 ” speaker driver is designed of wide frequency response 100-16KHz, the multiple power taps 3W &#038; 5W are helpful for different applications varies from room size and ambient noise surroundings. The Aluminum grille, ABS baffle and ABS back cover are painted in attractive white color.
 Its spring clip clamp makes the easy and secure installation.
Characteristics
&#8211; Model T-105F
&#8211; Power Taps @100V 3W, 6W
&#8211; Power Taps @70V1.5W, 3W
&#8211; Impedance Com/ 3.3KΩ/ 1.7KΩ
&#8211; SPL (1W/1M) 89dB
&#8211; Max. SPL (Rated W/1M) 96dB
Specifications
&#8211; Finish Baffle: Steel ,white Grille: Steel ,white
&#8211; Speaker Driver5&#8243; x 1
&#8211; Cutout Size 165mm
&#8211; Dimensions 180 x 102mm
&#8211; Weight 0.7Kg
&#8211; Mounting Flush-mount dog ears

ITC - T-105F, Sealing Speaker, 5"

Description
Coaxial high-pitched design, strong spring fixed, easy and simple installation.
Specification:
Model:T-106A
Power taps @100V:3W, 6W, 9W
Power taps @70V:1.5W, 3W, 4.5W
Impedance;
:Red: 3.3KΩ
:Green: 1.7KΩ
:White: 1.1KΩ
SPL(1W/1M):94dB
Frequency response (-10dB):80Hz -20KHz
Speaker driver:6&#8243; x 1 1.5&#8243; x 1
Cutout size:220mm
Dimensions:245 x 65mm
Weight:1Kg

T-106A Ceiling Speaker (with Tweeter)

Description
Coaxial high-pitched design, strong spring fixed, easy and simple installation.
Specification：
Model:T-105A
Power taps @100V:1.5W, 3W, 6W
Power taps @70V:0.75W, 1.5W, 3W
Impedance;
:Black: Com Red: 6.7 KΩ
:Green:3.3KΩ White:1.7KΩ
SPL(1W/1M):94dB
Frequency tesponse (-10dB):80-20KHz
Speaker driver:5&#8243; x 1 1.5&#8243; x 1
Cutout size:170mm
Dimensions:200 x 55mm
Weight:0.8Kg

T-105A Ceiling Speaker (with Tweeter)

Description
Model:T-106
Power taps @100V:3W, 6W, 9W
Power taps @70V:1.5W, 3W, 4.5W
Impedance;
:Red: 3.3KΩ
:Green : 1.7KΩ White: 1.1KΩ
SPL(1W/1M):94dB
Frequency response (-10dB):80Hz -20KHz
Speaker driver:6&#8243;×1
Cutout size:220mm
Dimensions:246×66mm
Weight:1Kg

T-106 Ceiling Speaker (3W-6W-9W)

Description
Model:T-105
Power taps @100V:1.5W, 3W, 6W
Power taps @70V:0.75W, 1.5W, 3W
Impedance;
:Black: Com Red: 6.7KΩ/
:Green: 3.3KΩ/ White: 1.7KΩ
SPL(1W/1M):92dB
Frequency response (-10dB):80-20KHz
Speaker driver:5&#8243;×1
Cutout size:170mm
Dimensions:200×55mm
Weight:0.8Kg

T-105 Ceiling Speaker (1.5W-3W-6W)

Description
Model:T-104
Power taps @100V:1.5W, 3W, 6W
Power taps @70V:0.75W, 1.5W, 3W,
Impedance;
:Black: Com Red:6.7KΩ
:Green:3.3KΩ White:1.7KΩ
SPL(1W/1M):92dB
Frequency response (-10dB):80-20KHz
Speaker driver:4&#8243; x 1
Cutout size:155mm
Dimensions:180 x 50mm
Weight:0.7Kg

T-104 Ceiling Speaker (1.5W-3W-6W)

Description
Rated power (100V):3W, 6W, 9W
Rated power (70V):1.5W, 3W, 4.5W
Impedance:Black: COM / Red: 3.3KΩ / Green: 1.7KΩ / White: 1.1KΩ
Sensitivity (1W/1M):91dB
Frequency response (-10dB):80-20kHz
Speaker unit:6&#8243;×1
Cutout size:170mm
Dimensions:200×86mm
Weight:0.9kg

T-106U Ceiling Speaker (3W-6W-9W)

Description
Model:T-105U
Power taps @100V:1.5W, 3W, 6W
Power taps @70V:0.75W, 1.5W, 3W
Impedance;
:Black: Com Red: 6.7KΩ
:Green: 3.3KΩ White: 1.7KΩ
SPL(1W/1M):89dB
Frequency response (-10dB):80-20KHz
Speaker driver:5&#8243;×1
Cutout size:145mm
Dimensions:172 ×80mm
Weight:0.75Kg
High quality ceiling speaker, plastic basin frame, spring pressing system, convenient installation. It is suitable for hotels, hotels, clubs and so on.

T-105U Ceiling Speaker (1.5W-3W-6W)

Description
Model:T-104U
Power taps @100V:1W, 2W, 3W
Power taps @70V:0.5W, 1W,1.5W,
Impedance:Black: Com Red:10KΩ; Green:5KΩ White:3.3KΩ
SPL(1W/1M):88dB
Frequency response (-10dB):80Hz -20KHz
Speaker driver:4&#8243; x 1
Cutout size:108mm
Dimensions:134 x 84mm
Weight:0.5Kg

Ceiling Speaker T-104U

Description
Volume Control On Wall Mounting Back Box, plastic

V-8M Volume Control Box

Description
ABS Mounting Box for Volume Contro

V-8P Volume Control Box

Description
Model :T-6FS
Input Power :6W
Control Mode :Transformer
Signal Input :70~100V
Signal Output :0~100V
Speaker Type :Voltage Speaker
Frequency Response :80Hz-16KHz
Attenuation :Impedance
Step :5 steps
Relay :With DC24V relay
Finish :PC, white
Mounting Size :80 x 80 x 60mm
Dimension :85 x 85 x 50mm
Weight :0.17Kg
Accessory :One pair screw of M4 x 25

T-675C3 Wired Volume Control

Description
Model:T-674C
Input Power:60W
Control Mode:Transformer
Signal Input:70~100V
Signal Output:0~100V
Speaker Type:Voltage Speaker
Frequency Response:80-16KHz
Step:11 Steps
Finish:ABS, white
Mounting Size:80 x 80 x 60mm
Dimension:86.7 x 86.7 x 67.5mm
Weight:0.20Kg
Accessory:One pair screw of M4 x 25
Note: It must be equipped with itc three wire power amplifier; can be installed with standard universal plastic bottom shell (L80 ×W 80 ×D60 mm).

T-674C Wired Volume Control

Description
Model:T-673C
Input Power:30W
Control Mode:Transformer
Signal Input:70~100V
Signal Output:0~100V
Speaker Type:Voltage Speaker
Frequency Response:80-16KHz
Step:11 Steps
Finish:ABS, white
Mounting Size:80 x 80 x 60mm
Dimension:86.7 x 86.7 x 67.5mm
Weight:0.20Kg
Accessory:One pair screw of M4 x 25
Note: It must be equipped with itc three wire power amplifier; can be installed with standard universal plastic bottom shell (L80 ×W 80 ×D60 mm).

T-673C Wired Volume Control

Description
Model:T-672C
Input Power:15W
Control Mode:Transformer
Signal Input:70~100V
Signal Output:0~100V
Speaker Type:Voltage Speaker
Frequency Response:80-16KHz
Step:11 Steps
Finish:ABS, white
Mounting Size:80 x 80 x 60mm
Dimension:86.7 x 86.7 x 67.5mm
Weight:0.20Kg
Accessory:One pair screw of M4 x 25
Note: It must be equipped with itc three wire power amplifier; can be installed with standard universal plastic bottom shell (L80 ×W 80 ×D60 mm).

T-672C Wired Volume Control

Description
Model:T-671C
Input Power:6W
Control Mode:Transformer
Signal Input:70~100V
Signal Output:0~100V
Speaker Type:Voltage Speaker
Frequency Response:80-16KHz
Step:11 Steps
Finish:ABS, white
Mounting Size:80 x 80 x 60mm
Dimension:86.7 x 86.7 x 67.5mm
Weight:0.14Kg
Accessory:One pair screw of M4 x 25
Note: It must be equipped with itc three wire power amplifier; can be installed with standard universal plastic bottom shell (L80 ×W 80 ×D60 mm).

T-671C Wired Volume Control

Description
Model:T-685F
Rated Power:100W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

Volume Control with Relay T-685F

Description
Model:T-684F
Rated Power:60W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

Volume Control with Relay  T-684F

Description
Model:T-6838F
Rated Power:30W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

Volume Control with Relay T-683F

Description
Model:T-682FF
Rated Power:15W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

Volume Control with Relay T-682F

Description
Model:T-681F
Rated Power:6W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

Volume Control with Relay  T-681F

Description
Model:
T-685
Rated Power:100W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

T-685 Volume Control

Description
Model:
T-684
Rated Power:60W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

T-684 Volume Control

Description
Model:
T-683
Rated Power:30W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

T-683 Volume Control

Description
Model:
T-682
Rated Power:15W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

T-682 Volume Control

Description
Model:
T-681
Rated Power:6W
Line Input:100V
Attenuation Per Step:3dB
Total Attenuation:33dB
Attenuation Positions:10 plus off
Material:PC
Finished Color:White
Mounting:Flush and Surface

T-681 Volume Control

Specifications:
Model with &#8220;F&#8221; with alarm cutting function;
Note: Standard universal plastic bottom box (L80× W80×D60mm) can be used for installation.
Model :T-675
Input Power :100W
Control Mode :Transformer
Signal Input :70~100V
Signal Output :0~100V
Speaker Type :Voltage Speaker
Frequency Response:80Hz-16KHz
Step :11 Steps
Finish :PC, white
Mounting Size :80 x 80 x 60mm
Dimension :86.7 x 86.7 x 67.5mm
Weight :0.22Kg
Accessory:One pair screw of M4 x 25

Volume Control  T-675

Specifications:
Model with &#8220;F&#8221; with alarm cutting function;
Note: Standard universal plastic bottom box (L80× W80×D60mm) can be used for installation.
Model :T-674
Input Power :60W
Control Mode :Transformer
Signal Input :70~100V
Signal Output :0~100V
Speaker Type :Voltage Speaker
Frequency Response:80Hz-16KHz
Step :11 Steps
Finish :PC, white
Mounting Size :80 x 80 x 60mm
Dimension :86.7 x 86.7 x 67.5mm
Weight :0.20Kg
Accessory:One pair screw of M4 x 25

Volume Control  T-674

Specifications:
Model with &#8220;F&#8221; with alarm cutting function;
Note: Standard universal plastic bottom box (L80× W80×D60mm) can be used for installation.
Model :T-673
Input Power :30W
Control Mode :Transformer
Signal Input :70~100V
Signal Output :0~100V
Speaker Type :Voltage Speaker
Frequency Response:80Hz-16KHz
Step :11 Steps
Finish :PC, white
Mounting Size :80 x 80 x 60mm
Dimension :86.7 x 86.7 x 67.5mm
Weight :0.20Kg
Accessory:One pair screw of M4 x 25

Volume Control  T-673

Specifications:
Model with &#8220;F&#8221; with alarm cutting function;
Note: Standard universal plastic bottom box (L80× W80×D60mm) can be used for installation.
Model :T-672
Input Power :15W
Control Mode :Transformer
Signal Input :70~100V
Signal Output :0~100V
Speaker Type :Voltage Speaker
Frequency Response:80Hz-16KHz
Step :11 Steps
Finish :PC, white
Mounting Size :80 x 80 x 60mm
Dimension :86.7 x 86.7 x 67.5mm
Weight :0.20Kg
Accessory:One pair screw of M4 x 25

Volume Control  T-672

Specifications:
Model with &#8220;F&#8221; with alarm cutting function;
Note: Standard universal plastic bottom box (L80× W80×D60mm) can be used for installation.
Model :T-671
Input Power :6W
Control Mode :Transformer
Signal Input :70~100V
Signal Output :0~100V
Speaker Type :Voltage Speaker
Frequency Response:80Hz-16KHz
Step :11 Steps
Finish :PC, white
Mounting Size :80 x 80 x 60mm
Dimension :86.7 x 86.7 x 67.5mm
Weight :0.14Kg
Accessory:One pair screw of M4 x 25

Volume Control  T-671

Description
Model
T-6236BMU
UHF microphone
High-grade metal appearance
Output Power
100W
Input sensitivity1
MIC1: 150MV/680Ω
Input sensitivity2
MIC2:5MV/600Ω
Input sensitivity3
AU×: 350MV/10KΩ
Front output
1V/0dB
Digital amplifier
Class D
MP3 Support Format
MP3
Maximum Support Capacity
32GB USB drive
Sound quality control
Bass 10dB/Treble 10dB
Frequency response
100-16KHz(+1dB,-3dB)
SNR
≧73dB
THD
≦0.5%
Wireless transmission distance
30-50M
Power supply
～220V / 50Hz
Power consumption
150W
Size (mm)
580(L)×420(W)×1200(H)
Weight
30Kg

T-6236BMU High-end Multifunctional Luxury Podium

Description
Model:
 T-6236B
Power supply:
~110V-230V 50/60Hz
Power consumption:
100W
Frequency response:
100Hz~16KHz
Output Power:
60W
Input Sensitivity
MIC1: -50dB ±2dB1.5/680Ω
MIC2: -55dB ±2dB1.5/600Ω
LINE: -20dB ±2dB1.5/50Ω
Aux: 1.-20dB ±2dB1.5/10KΩ
 2.-15dB ±2dB1.5/30KΩ
 3.-10dB ±2dB1.5/50KΩ
 4.-3dB ±2dB1.5/80KΩ
Record Output:
1V/0dB
Quality control:
Bass:10dB/Treble:10dB
Transmission distance:
15~30M
Dimensions (L x W x H) :
580 x 420 x 1100 mm
Weight:
12.26Kg

T-6236 Lectern T-6236B Lectern with Wireless VHF MIC

Description
Rated Power Output:
60 W
 Frequency Response:
100Hz &#8211; 16kHz
 Outputs:
MIC1:-50dB/600 Ohm
MIC2:-55dB/600 Ohm
LINE:-20dB/50 Ohm
AUX1:-20dB/10k Ohm
AUX2:-15dB/30k Ohm
AUX3:-10dB/50k Ohm
AUX4:-3dB/80k Ohm
 Output:
0 dB
 Tone Control:
Bass, Treble: 10dB
Power Consumption:
100 W
 Power Supply:
~230V/50Hz
Dimensions:
580x420x1100 mm
Weight:
29,0 kg

T-6236 Digital Lectern

Description
Wired Handheld Microphone Stand,
1030-1710mm height and
750mm length for the bar

TK-300H Microphone Floor Stand

Description
Model:
TK-200
Height:
160-200mm
Weight:
0.23kg

TK-200 Desktop Microphone Stand

Description
Model:
TK-300
Height:
980-1680mm
Slanting pole:
550-900mm
Weight:
1.5kg

TK-300 Microphone Floor Stand

Description
Model	T-540
Pickup cartridge	Cardioid directional microphone
Switching mode	Dual condenser mode
Frequency response	30Hz-16kHz
Output impedance (Ω)	Balanced 75Ω
Sensitivity	-43dB±2dB
Power supply	Phantom power 48V
Adjustable height	0.1 m ~ 1.65 m
Microphone weight	11 Kg
Microphone cable	XLR cable
Base	Conical diameter of 240mm, height of 60mm
Anti-interference	Resistant to phone, electromagnetism, high-frequency interference

Microphone T-540

Description
High-quality professional condenser sound head and noise reduction circuit, supercardioid directivity and high sensitivity.
With the switching of the noise reduction circuit, the microphone can achieve super quiet effect when turning on and off.
Elegant and unique appearance, it is a high-level professional microphone for various high-level meetings, public broadcasting, performance and meeting.
Length 20cm.
Model
TS-549M
Microphone type:
Dual condenser microphone
Frequency range:
40 Hz &#8211; 18 kHz
Direction:
supercardioid
Output impedance:
75 Ohm balanced
Sensitivity:
-45 dB
Dynamic range:
109 dB at 1 kHz
SNR:
65 dB 1 KHz at 1 Pa
Nutrition:
Phantom 48V
Turning on the microphone:
Through the button
Microphone length:
200 mm
Weight:
0.65 kg

ITC TS-549M Dual Tabletop Microphone

Description
Model	T-521B
Frequency Response	250 to 10KHz
Impedance	500 ohm
Sensitivity	-74dB
Dimension	98x50x30mm
Weight	0.5Kg

ITC T-521B Hand-clip Condenser mic (PTT)

Description
Model
T-521A
Sensitivity
-35dB±3dB
Frequency
60Hz~14000Hz
Output Impedance
 ≤200Ω
Dimensions
122*150*42mm
Weight
1Kg
Operating Voltage
DC9V

T-521A Microphone (Built-in chime)

Description
The Microphone with prelude sound (when open, prelude music is released), with light ring prompt function, with good anti-cell phone, electromagnetic, high frequency interference ability.
Specification：
Model
T-621A
Capsule Type
Condenser
Polar Pattern
Cardioid
Frequency Response
40Hz-16000Hz
Mic Sensitivity
-43±2dB
Prelude Sensitivity
-50dB±2dB
Bell Reminder Function
YES
Wire Equipment
10m (XLRF t turn 6.35 audio cable)
Microphone Length
420mm
Dimension
125 x 150 x 455mm
Weight
0.67kg
Power Supply
~AC 220/50Hz (Power Adapter DC 11.4V) DC9V

T-621A Microphone (Built-in chime)

Description
.1U tabletop and rack mount design with aluminum alloy panel.
. Clearly visible LCD display, microcomputer control and touch-button operation.
. FM / AM two-band receive option, FM receiving frequency: 76MHz ~ 108MHz, AM receiving frequency : 520KHZ ~ 1708KHz.
. Radio frequency automatic search and memory function, memory up to 99bands, and a power off memory function.
. Using vehicle dedicated digital radio module, integrated radio tuner module ,with a small size good performance and strong anti-interference, etc.
. Support infrared remote control.
. 1 channel audio signals left and right channels (L / R) output.
. Built-in high-fidelity wideband monitor speaker, sound full and clear.
. A monitor with adjustable volume knob.

ITC T-6222 DIGITAL AM/FM TUNER

For professional use and PA system. It is professional equipment for using at restaurant, leisure cafes, classrooms, school etc.
Features:
. 1U tabletop and rack mount design with aluminum alloy panel.
. Microcomputer control and touch-button operation.
. Intake type CD player for longer life span and better dustproof.
. Dynamic VFD florescent screen display.
. High reliable CD core with ESS decode system of powerful error recovery.
. Automatic play control and full digital service.
. Support CD / VCD / MP3/DVD discs play.
. 1 channel audio signals left and right channels (L / R) output.
. Built-in high-fidelity wideband monitor speaker, sound full and clear; a monitor with adjustable volume knob.
. Built-in MP3 player with readable USB and SD card.
Specifications:
Model:T-6221
Power Supply:~220V 50Hz
Power Consumption:30W
Dimension:484 x 210 x 44mm
Weight:3.24Kg

T-6221 CD/MP3 Player

Description
Standard cabinet-type design (1U), black alumina brushed panel, humanized drawing, exquisite craftsmanship, showing high-grade temperament.
. Built-in USB interface / SD card slot, CD movement and radio, Bluetooth four audio sources, CD player and MP3 player share one channel output, radio and Bluetooth share one channel output.
. CD uses high-end suction movement.
. The radio uses a high-sensitivity radio module; FM and AM (AM / FM) stereo two-band reception is optional, and the radio frequency memory can be stored up to 99 bands.
. With infrared remote control function, and can independently control the volume control.
Model:T-2221
Frequency Response:20Hz~20KHz (-2dB)
THD:≤0.1%
Channel Separation:65dB
Dynamic Range:75dB
S/N Ratio:85dB
CD Audio Output:775mV
Radio Frequency:FM: 87.5-108.0MHz, AM: 522-1620KHz
Antenna Input;
FM: 75Ω Unbalance,
AM: Low impedance round ring antenna
Sensitivity:FM: ≤10uA, AM:≤100uA
Band Memory:99
Radio Audio Output:775mV/600Ω
Power Supply:~220V 50Hz
Dimensions:484 x 209 x 44mm
Net Weight:3.8Kg

T-2221 CD/MP3 Player with Tuner (4 Audio Sources in One)

Model:T-2500ME
Rated output power;
:2x500W@4Ω
:2x500W@100V
Input sensitivity and impedance;
:MIC1, 2, 3,: ±2.5mV/600Ω- ±200mV/10KΩ, with phantom balanced input)
:DVD: 350mV/10KΩ, (unbalanced input)
:VCD: 350mV/10KΩ, (unbalanced input)
:BMG: 350mV/10KΩ, (unbalanced input)
:Optical fiber, coaxial:1000mV
Output;
:SW (150Hz): 1V/470Ω
:PRE: 1V±50mv/470
:REC: 200mV±20mv/470Ω
ΩMicrophone tone;
:Bass: ±10dB at 100Hz
:Alto: ±10dB at 2KHz
:Treble: ±10dB at 10KH
zMusic tone;
:Bass: ±10dB at 100Hz
:Alto: ±10dB at 2KHz
:Treble: ±10dB at 10KH
zTHD:Power amplifier rated output power 1Kz (under 1/8A power condition) ≤0.1%
USB playback:Support MP3, WAV, APE, FLAC
Communication:RS485 communication central control integrated control function
Frequency response;
:DVD, VCD, BGM: 20HZ (±3dB)-20KHZ (±3dB)
:Mic: 50HZ (±3dB)-16KHZ (±3dB)
SNR;
:Mic: ≥85dB,
:Music: ≥85dB
Protection: Overload, short circuit, overvoltage and undervoltage protection.
Indicator light:Power supply, output level
Supply voltage:~220V 50Hz/~110V/60Hz
Power loss:1200W
Weight: 8.2Kg
Size(LxWxH):430x395x88m
.The audio source has multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone, etc.;
. Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal
excitation;
. The control function is realized through infrared remote control, coded switches, and buttons;
. Panel LCD screen intuitively displays of various functions and working status;
. Provide 3-channel RCA line inputs, 3-channel balanced microphone with phantom power inputs;
. With DSP processor, multiple preset scene modes;
. The volume of each microphone is independently adjustable, the effect is adjustable, and the music volume is independently adjustable.Treble, Alto,
Bass adjustment;
. Built-in RS485 communication central integrated control function.
. Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats;
. With the soft start protection function of switch , with voltage limit, short circuit, overload, and overheat protection;
. Panel: Aluminum alloy material;
. Built-in 48V phantom switch control function;
. Support Bluetooth function. It can connect with mobile phones, computers and other devices;
. Each microphone input has a gain adjustment function, enabling the best match between microphone and the input state of the amplifier;
. Support constant impedance and constant voltage (4Ω/100V) switching function.

2-channel Multimedia Mosque Amplifier T-2500ME

Model:T-2240ME
Rated output power;
:2x240W@4Ω
:2x240W@100V
Input sensitivity and impedance;
:MIC1, 2, 3,: ±2.5mV/600Ω- ±200mV/10KΩ, with phantom balanced input)
:DVD: 350mV/10KΩ, (unbalanced input)
:VCD: 350mV/10KΩ, (unbalanced input)
:BMG: 350mV/10KΩ, (unbalanced input)
:Optical fiber, coaxial:1000mV
Output;
:SW (150Hz): 1V/470Ω
:PRE: 1V±50mv/470
:REC: 200mV±20mv/470Ω
ΩMicrophone tone;
:Bass: ±10dB at 100Hz
:Alto: ±10dB at 2KHz
:Treble: ±10dB at 10KH
zMusic tone;
:Bass: ±10dB at 100Hz
:Alto: ±10dB at 2KHz
:Treble: ±10dB at 10KH
zTHD:Power amplifier rated output power 1Kz (under 1/8A power condition) ≤0.1%
USB playback:Support MP3, WAV, APE, FLAC
Communication:RS485 communication central control integrated control function
Frequency response;
:DVD, VCD, BGM: 20HZ (±3dB)-20KHZ (±3dB)
:Mic: 50HZ (±3dB)-16KHZ (±3dB)
SNR;
:Mic: ≥85dB,
:Music: ≥85dB
Protection: Overload, short circuit, overvoltage and undervoltage protection.
Indicator light:Power supply, output level
Supply voltage:~220V 50Hz/~110V/60Hz
Power loss:600W
Weight:5Kg
Size(LxWxH):430x395x88m
.The audio source has multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone, etc.;
. Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal
excitation;
. The control function is realized through infrared remote control, coded switches, and buttons;
. Panel LCD screen intuitively displays of various functions and working status;
. Provide 3-channel RCA line inputs, 3-channel balanced microphone with phantom power inputs;
. With DSP processor, multiple preset scene modes;
. The volume of each microphone is independently adjustable, the effect is adjustable, and the music volume is independently adjustable.Treble, Alto,
Bass adjustment;
. Built-in RS485 communication central integrated control function.
. Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats;
. With the soft start protection function of switch , with voltage limit, short circuit, overload, and overheat protection;
. Panel: Aluminum alloy material;
. Built-in 48V phantom switch control function;
. Support Bluetooth function. It can connect with mobile phones, computers and other devices;
. Each microphone input has a gain adjustment function, enabling the best match between microphone and the input state of the amplifier;
. Support constant impedance and constant voltage (4Ω/100V) switching function.

2-channel Multimedia Mosque Amplifier T-2240ME

Description
5 Zone Remote Paging Microphone, with zone, group zone and any zone paging capability, One amplifier capacity is 5 microphones.
. The microphone was connected to the amplifier via a CAT 5 cable
. The microphone is DC24V powered by the amplifier at a distance of max 1kms
. Built-in 2 and 4 tone selector pre-announcement chime
. With microphone, chime and master volume control
. With 10 segments level meter
Features
&#8211; MIC Type: Condenser Microphone
&#8211; Communication mode: Control level
&#8211; Capacity: 5 ZONE
&#8211; Output level: 1V / 600Ω
&#8211; Response frequency: 80-18 KHz (+1/-3 dB)
&#8211; THD: ≤ 1%
&#8211; Power consumption: 10W
Specifications
&#8211; Communication distance: 1KM
&#8211; Power source: 24V DC
&#8211; Dimensions: 197 x 115 x 43.5 mm
&#8211; Weight: 960g (without microphone)

ITC - T-418, 5-Zone Remote Controlled Paging Microphone

Features:
. Adopt standard universal plastic bottom box
. Volume control and audio source selection.
. Work with T-4120UC series.
. Adopt dip switch to select the corresponding control channel.
. Built-in power indicator.
Model:T-651
Communication Method:RS-485
Power Supply:DC 24V
Signal Output:0~100V
Control:Volume control
Channel selection:A—INPUT2, B—INPUT3, C—INPUT4, D—LINE1, E—LINE2, F—Multimedia (MP3)
Panel Color:Champagne gold
Optional Bottom Case:77x77x48mm
Size:86x86x46mm
Weight:0.2Kg
Accessory:M4x18 screws &#8230;&#8230; 2

Sound Control Panel  T-651

Description
The professional remote paging microphone can be installed in the master control room, duty room or leadership office room. It can be used for single zone or all zone broadcasting.
Characteristics
&#8211; High-fidelity microphone with Call button and Chime button: press Call button when the Chime button is on, you will hear the chime at first.
&#8211; Chime number selection: 2 tones or 4 tones.
&#8211; 24V DC power input.
&#8211; When the microphone is in cascade, it supports overriding and queuing functions.
&#8211; With touch screen, zone selection button: user can flexibly choose 1~4 zones(single/multiple/all zones) for paging.
&#8211; Address code setting: after it is powered on, long press ZONE1-4 button to set their address codes respectively. Red ﬂashing light indicates the setting is ongoing. Microphone address code should not be duplicate. The microphone with “01” address code has the highest priority, and can override other microphone when pressed
&#8211; Support auto standby function: when no signal is detected from mic for one minute, the call will be ended automatically. And the Call button indicator is off
&#8211; RS485 online port can be cascaded to 4 T-214B.
&#8211; Support MIC/ Chime/ Master volume adjustment.
&#8211; Support 10-band volume level display.
Specifications
&#8211; Model: T-214B
&#8211; Mic type: Condenser microphone
&#8211; Communication mode: RS-485 control
&#8211; Capacity : 4 zones
&#8211; Output level: 1V/600Ω
&#8211; Frequency response: 80-16KHz (+1/-3dB)
&#8211; THD: ≤1%
&#8211; Power consumption: 10W
&#8211; Transmission distance: 1KM (when ≥50M, a separate 24V external power supply is required)
&#8211; Voltage : DC24V
&#8211; Size : 170x142x54mm
&#8211; Weight : 0.96kg (without microphone)

ITC - T-214B 4-zone High-fidelity Remote Paging Microphone

Description
Model:T-4240UC
Output terminal:4-16Ω, 100V
Output power:2*240W
Input sensitivity &#038; impedance;
:INPUT1-4: 5mV-350MV±40MV/600Ω;
:LINE1-2: 350mV±40MV/10KΩ unbalanced RCA connector;
:EMC: 775mV/10KΩ unbalanced European connector
Output sensitivity &#038; source impedance
CH1-2: 1000mV/470Ω unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz
:Treble: ±10dB at 10KHz
Frequency response:80~16KHz(+1dB,-3dB)
SNR:INPUT1-4:66dB; LINE1-2:80dB
THD:< 0.5% (at 1KHz, 1/3 rated power)
Phantom power:48V (±2V)
Protection:High temperature, overload, short circuit
Cooling:Fan forced cooling
Power consumption:1200W
Power supply:230V/50Hz
Dimension:484x395x88mm
Weight:7.6kg

.120W/240W constant impedance and voltage high performance digital power amplifier (4-16Ω/100V) with 2/4 channel outputs.
. Built-in MP3 recording function.
. 6-channel independent volume control.
. 6-channel audio sources can be input to each channel output through matrix configuration.
. INPUT 1-4 with adjustable gain.
. 2/4-channel outputs support independent power amplifier tone adjustment.
. Support 4 remote microphone inputs.
. Built-in MP3 (U disk/SD card) player function.
. Built-in FM radio function.
. Adopt 2.4-inch high-grade TFT display.
. 2/4-channel outputs support the remote panel control.
. Distortion, protection, signal, output status indicator.
. INPUT 1-4 channels support phantom power.
. 1-4 Channels enjoy priority and mixing selection function.
. Enjoy priority input port of EMC alarm sound source.
. ALARM port to play the specified alarm track.
. Built-in Bluetooth function and external high-gain Bluetooth antenna to connect to mobile phones / computers.
. 2/4-channel MUTE ports can be connected to the fire control port.
. Priority: EMC>MUTE>REMOTE MIC>INPUT 1-4>LINE 1-2.

T-4240UC 2/4 Channel Matrix Digital Mixer Amplifier

Description
Model:T-4120UC
Output terminal:4-16Ω, 100V
Output power:2*120W
Input sensitivity &#038; impedance;
:INPUT1-4: 5mV-350MV±40MV/600Ω;
:LINE1-2: 350mV±40MV/10KΩ unbalanced RCA connector;
:EMC: 775mV/10KΩ unbalanced European connector
Output sensitivity &#038; source impedance
CH1-2: 1000mV/470Ω unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz
:Treble: ±10dB at 10KHz
Frequency response:80~16KHz(+1dB,-3dB)
SNR:INPUT1-4:66dB; LINE1-2:80dB
THD:< 0.5% (at 1KHz, 1/3 rated power)
Phantom power:48V (±2V)
Protection:High temperature, overload, short circuit
Cooling:Fan forced cooling
Power consumption:650W
Power supply:230V/50Hz
Dimension:484x395x88mm
Weight:7.3kg

.120W/240W constant impedance and voltage high performance digital power amplifier (4-16Ω/100V) with 2/4 channel outputs.
. Built-in MP3 recording function.
. 6-channel independent volume control.
. 6-channel audio sources can be input to each channel output through matrix configuration.
. INPUT 1-4 with adjustable gain.
. 2/4-channel outputs support independent power amplifier tone adjustment.
. Support 4 remote microphone inputs.
. Built-in MP3 (U disk/SD card) player function.
. Built-in FM radio function.
. Adopt 2.4-inch high-grade TFT display.
. 2/4-channel outputs support the remote panel control.
. Distortion, protection, signal, output status indicator.
. INPUT 1-4 channels support phantom power.
. 1-4 Channels enjoy priority and mixing selection function.
. Enjoy priority input port of EMC alarm sound source.
. ALARM port to play the specified alarm track.
. Built-in Bluetooth function and external high-gain Bluetooth antenna to connect to mobile phones / computers.
. 2/4-channel MUTE ports can be connected to the fire control port.
. Priority: EMC>MUTE>REMOTE MIC>INPUT 1-4>LINE 1-2.

T-4120UC 2/4 Channel Matrix Digital Mixer Amplifier

Description
Model:T-2240UC
Output terminal:4-16Ω, 100V
Output power:2*240W
Input sensitivity &#038; impedance;
:INPUT1-4: 5mV-350MV±40MV/600Ω;
:LINE1-2: 350mV±40MV/10KΩ unbalanced RCA connector;
:EMC: 775mV/10KΩ unbalanced European connector
Output sensitivity &#038; source impedance
CH1-2: 1000mV/470Ω unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz
:Treble: ±10dB at 10KHz
Frequency response:80~16KHz(+1dB,-3dB)
SNR:INPUT1-4:66dB; LINE1-2:80dB
THD:< 0.5% (at 1KHz, 1/3 rated power)
Phantom power:48V (±2V)
Protection:High temperature, overload, short circuit
Cooling:Fan forced cooling
Power consumption:650W
Power supply:230V/50Hz
Dimension:484x395x88mm
Weight:6.2kg

.120W/240W constant impedance and voltage high performance digital power amplifier (4-16Ω/100V) with 2/4 channel outputs.
. Built-in MP3 recording function.
. 6-channel independent volume control.
. 6-channel audio sources can be input to each channel output through matrix configuration.
. INPUT 1-4 with adjustable gain.
. 2/4-channel outputs support independent power amplifier tone adjustment.
. Support 4 remote microphone inputs.
. Built-in MP3 (U disk/SD card) player function.
. Built-in FM radio function.
. Adopt 2.4-inch high-grade TFT display.
. 2/4-channel outputs support the remote panel control.
. Distortion, protection, signal, output status indicator.
. INPUT 1-4 channels support phantom power.
. 1-4 Channels enjoy priority and mixing selection function.
. Enjoy priority input port of EMC alarm sound source.
. ALARM port to play the specified alarm track.
. Built-in Bluetooth function and external high-gain Bluetooth antenna to connect to mobile phones / computers.
. 2/4-channel MUTE ports can be connected to the fire control port.
. Priority: EMC>MUTE>REMOTE MIC>INPUT 1-4>LINE 1-2.

T-2240UC 2/4 Channel Matrix Digital Mixer Amplifier

Description
Model:T-2120UC
Output terminal:4-16Ω, 100V
Output power:2*120W
Input sensitivity &#038; impedance;
:INPUT1-4: 5mV-350MV±40MV/600Ω;
:LINE1-2: 350mV±40MV/10KΩ unbalanced RCA connector;
:EMC: 775mV/10KΩ unbalanced European connector
Output sensitivity &#038; source impedance
CH1-2: 1000mV/470Ω unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz
:Treble: ±10dB at 10KHz
Frequency response:80~16KHz(+1dB,-3dB)
SNR:INPUT1-4:66dB; LINE1-2:80dB
THD:< 0.5% (at 1KHz, 1/3 rated power)
Phantom power:48V (±2V)
Protection:High temperature, overload, short circuit
Cooling:Fan forced cooling
Power consumption:370W
Power supply:230V/50Hz
Dimension:484x395x88mm
Weight:6.0kg

.120W/240W constant impedance and voltage high performance digital power amplifier (4-16Ω/100V) with 2/4 channel outputs.
. Built-in MP3 recording function.
. 6-channel independent volume control.
. 6-channel audio sources can be input to each channel output through matrix configuration.
. INPUT 1-4 with adjustable gain.
. 2/4-channel outputs support independent power amplifier tone adjustment.
. Support 4 remote microphone inputs.
. Built-in MP3 (U disk/SD card) player function.
. Built-in FM radio function.
. Adopt 2.4-inch high-grade TFT display.
. 2/4-channel outputs support the remote panel control.
. Distortion, protection, signal, output status indicator.
. INPUT 1-4 channels support phantom power.
. 1-4 Channels enjoy priority and mixing selection function.
. Enjoy priority input port of EMC alarm sound source.
. ALARM port to play the specified alarm track.
. Built-in Bluetooth function and external high-gain Bluetooth antenna to connect to mobile phones / computers.
. 2/4-channel MUTE ports can be connected to the fire control port.
. Priority: EMC>MUTE>REMOTE MIC>INPUT 1-4>LINE 1-2.

T-2120UC 2/4 Channel Matrix Digital Mixer Amplifier

Zone selection button: User can choose single zone, multi zones, or all zones for paging.
. Call button and warning tone button: Press call button when the warning tone button is on,
the ring come out firstly.
. Number of rings selection: 2 sounds or 4 sounds.
. Address code setting: After equipment powered on, long press button zone 1 to 6 to set their address code. If in red flashing light, it means the setting is ongoing. Same address code formicrophone is not allowed. Address code when press “01” has the highest priority and this microphone can override other microphone.
. Auto standby function: When no signal is detected from mic for one minute, the conversation will close automatically. And the call button is off.
. 24V DC power supply.
. RS485 online port, can be cascaded to 6 pieces.
. MIC/ Chime/ Main volume adjustment.
. The Panel is shown with 10 volume levels.
. Microphone support preemptive and queuing function when online use.
Specifications:
Model:T-216
Mic Type:Condenser microphone
Communication Mode:RS458 control
Capacity:6 ZONE
Output Level:1V/600Ω
Frequency Response:80-16KHz (+1/-3dB )
THD:≤1%
Power Consumption:10W
Communication Distance:1KM
Power Supply:24V DC
Dimension:170x142x54mm
Weight:920g

T-216 Six zones paging microphone

Description
 .4 Channel Microphone and 2 line input, treble and bass can be controlled separately .
. Mic1- 4 built-in 48V phantom power supply, and switch can be independently controlled.
. Support 1-channel remote microphone input, which can be connected to up to 6 remote zone microphones for remote control zone output.
. Support 1-channel EMC emergency alarm audio signal input interface, with the highest priority.
. Support 1-channel TEL telephone audio input interface, and the volume can be adjusted.
. Configure MP3 remote control, support power-off memory function and MIC recording function.
. With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
. Integrated bluetooth module, support playing music through mobile phone bluetooth.
. Integrated tuner module with FM radio port.
. Support 6 zone output, constant voltage 100V output, each zone volume can be adjusted independently.
. Constant voltage output: 70V, 100V, rated resistance output: 4-16 Ω.
. Support 1-channel line output and can be connected with recording or sound reinforcement processor.
. Built in bell, optional tone: 4 tones and 2 tones (built-in), alarm generator.
. When the built-in alarm generator is started, turn off the background music, 6 zone output will be automatically turned on, and the maximum output volume function will be forced to be switched off.
. A variety of indicator lights (signal, the top of the roof, to protect the LED indicator)
. Using fan forcible cooling structure, allowing the machine to work for a long time.
. There are 5 priority functions:
The first level EMC priority: when input the EMC alarm signal, all the sound source will be turn off, and the 6 Channel partition output will automatically open.
Second level: TEL/REM MIC override MIC1-4, LINE1-2 and bell tone.
Third level: built-in alarm generator override bell sound, MIC1-4, LINE1-2, 6 partition output will automatically open.
Fourth level: built-in bell tone override MIC1-4, LINE1-2.
Fifth level: built-in MIC1 override MIC2-4, LINE1-2.
. Support standby power supply 24 V no delay switching function, optional.
. It has the function of power fluctuation protection, over-voltage protection and under voltage protection.
Specifications:
Model:TI-5006S
Amplifier Section(Load 100V Output)
Rated Output Power (THD 1%):500W(RMS)
Speaker Zone 1~6 Output:85W MAX
Input Sensitivity/Impedance:5mV 600Ω/350mV 10KΩ BAL
S/N Ratio:Better than 75dB
Frequency Response (±3dB):80Hz~16KHz
Tone Control (Bass:100Hz, Treble:10KHz):±10dB
Phantom Power:+ 48V
Line Input Section(Mic 1~2 In@1KHz)
Input Sensitivity/Impedance:350mV/47KΩ
S/N:Better than 80dB
Frequency Response (±3dB):80Hz~16KHz
Tone Control (Bass: 100Hz,Treble:10KHz):±10dB
Input Sensitivity/Impedance:775mV/10KΩ
S/N:Better than 75dB
Frequency Response (±3dB):50Hz~16KHz
Input Sensitivity/Impedance:775mV/10KΩ
S/N:Better than 75dB
Frequency Response (±3dB):80Hz~16KHz
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In)
1V/600Ω:Remote MIC Sensitivity/Impedance
775mV/10KΩ:THD:≤ 0.1% at 1KHz, 1/3 rated power
Power Supply:~110V/60Hz or ~230V/50Hz &#038; DC 24V
Power Consumption:750W
Weight:9.0Kg
Dimensions:484x310x88 mm

TI-5006S 6 Zones Mixer Amplifier with Mp3

Description
 .4 Channel Microphone and 2 line input, treble and bass can be controlled separately .
. Mic1- 4 built-in 48V phantom power supply, and switch can be independently controlled.
. Support 1-channel remote microphone input, which can be connected to up to 6 remote zone microphones for remote control zone output.
. Support 1-channel EMC emergency alarm audio signal input interface, with the highest priority.
. Support 1-channel TEL telephone audio input interface, and the volume can be adjusted.
. Configure MP3 remote control, support power-off memory function and MIC recording function.
. With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
. Integrated bluetooth module, support playing music through mobile phone bluetooth.
. Integrated tuner module with FM radio port.
. Support 6 zone output, constant voltage 100V output, each zone volume can be adjusted independently.
. Constant voltage output: 70V, 100V, rated resistance output: 4-16 Ω.
. Support 1-channel line output and can be connected with recording or sound reinforcement processor.
. Built in bell, optional tone: 4 tones and 2 tones (built-in), alarm generator.
. When the built-in alarm generator is started, turn off the background music, 6 zone output will be automatically turned on, and the maximum output volume function will be forced to be switched off.
. A variety of indicator lights (signal, the top of the roof, to protect the LED indicator)
. Using fan forcible cooling structure, allowing the machine to work for a long time.
. There are 5 priority functions:
The first level EMC priority: when input the EMC alarm signal, all the sound source will be turn off, and the 6 Channel partition output will automatically open.
Second level: TEL/REM MIC override MIC1-4, LINE1-2 and bell tone.
Third level: built-in alarm generator override bell sound, MIC1-4, LINE1-2, 6 partition output will automatically open.
Fourth level: built-in bell tone override MIC1-4, LINE1-2.
Fifth level: built-in MIC1 override MIC2-4, LINE1-2.
. Support standby power supply 24 V no delay switching function, optional.
. It has the function of power fluctuation protection, over-voltage protection and under voltage protection.
Specifications:
Model:TI-3506S
Amplifier Section(Load 100V Output)
Rated Output Power (THD 1%):350W(RMS)
Speaker Zone 1~6 Output:70W MAX
Input Sensitivity/Impedance:5mV 600Ω/350mV 10KΩ BAL
S/N Ratio:Better than 75dB
Frequency Response (±3dB):80Hz~16KHz
Tone Control (Bass:100Hz, Treble:10KHz):±10dB
Phantom Power:+ 48V
Line Input Section(Mic 1~2 In@1KHz)
Input Sensitivity/Impedance:350mV/47KΩ
S/N:Better than 80dB
Frequency Response (±3dB):80Hz~16KHz
Tone Control (Bass: 100Hz,Treble:10KHz):±10dB
Input Sensitivity/Impedance:775mV/10KΩ
S/N:Better than 75dB
Frequency Response (±3dB):50Hz~16KHz
Input Sensitivity/Impedance:775mV/10KΩ
S/N:Better than 75dB
Frequency Response (±3dB):80Hz~16KHz
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In)
1V/600Ω:Remote MIC Sensitivity/Impedance
775mV/10KΩ:THD:≤ 0.1% at 1KHz, 1/3 rated power
Power Supply:~110V/60Hz or ~230V/50Hz &#038; DC 24V
Power Consumption:530W
Weight:8.6Kg
Dimensions:484x310x88 mm

TI-3506S 6 Zones Mixer Amplifier with Mp3

Description
 .4 Channel Microphone and 2 line input, treble and bass can be controlled separately .
. Mic1- 4 built-in 48V phantom power supply, and switch can be independently controlled.
. Support 1-channel remote microphone input, which can be connected to up to 6 remote zone microphones for remote control zone output.
. Support 1-channel EMC emergency alarm audio signal input interface, with the highest priority.
. Support 1-channel TEL telephone audio input interface, and the volume can be adjusted.
. Configure MP3 remote control, support power-off memory function and MIC recording function.
. With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
. Integrated bluetooth module, support playing music through mobile phone bluetooth.
. Integrated tuner module with FM radio port.
. Support 6 zone output, constant voltage 100V output, each zone volume can be adjusted independently.
. Constant voltage output: 70V, 100V, rated resistance output: 4-16 Ω.
. Support 1-channel line output and can be connected with recording or sound reinforcement processor.
. Built in bell, optional tone: 4 tones and 2 tones (built-in), alarm generator.
. When the built-in alarm generator is started, turn off the background music, 6 zone output will be automatically turned on, and the maximum output volume function will be forced to be switched off.
. A variety of indicator lights (signal, the top of the roof, to protect the LED indicator)
. Using fan forcible cooling structure, allowing the machine to work for a long time.
. There are 5 priority functions:
The first level EMC priority: when input the EMC alarm signal, all the sound source will be turn off, and the 6 Channel partition output will automatically open.
Second level: TEL/REM MIC override MIC1-4, LINE1-2 and bell tone.
Third level: built-in alarm generator override bell sound, MIC1-4, LINE1-2, 6 partition output will automatically open.
Fourth level: built-in bell tone override MIC1-4, LINE1-2.
Fifth level: built-in MIC1 override MIC2-4, LINE1-2.
. Support standby power supply 24 V no delay switching function, optional.
. It has the function of power fluctuation protection, over-voltage protection and under voltage protection.
Specifications:
Model:TI-1206S
Amplifier Section(Load 100V Output)
Rated Output Power (THD 1%):120W(RMS)
Speaker Zone 1~6 Output:50W MAX
Input Sensitivity/Impedance:5mV 600Ω/350mV 10KΩ BAL
S/N Ratio:Better than 75dB
Frequency Response (±3dB):80Hz~16KHz
Tone Control (Bass:100Hz, Treble:10KHz):±10dB
Phantom Power:+ 48V
Line Input Section(Mic 1~2 In@1KHz)
Input Sensitivity/Impedance:350mV/47KΩ
S/N:Better than 80dB
Frequency Response (±3dB):80Hz~16KHz
Tone Control (Bass: 100Hz,Treble:10KHz):±10dB
Input Sensitivity/Impedance:775mV/10KΩ
S/N:Better than 75dB
Frequency Response (±3dB):50Hz~16KHz
Input Sensitivity/Impedance:775mV/10KΩ
S/N:Better than 75dB
Frequency Response (±3dB):80Hz~16KHz
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In)
1V/600Ω:Remote MIC Sensitivity/Impedance
775mV/10KΩ:THD:≤ 0.1% at 1KHz, 1/3 rated power
Power Supply:~110V/60Hz or ~230V/50Hz &#038; DC 24V
Power Consumption:210W
Weight:6.7Kg
Dimensions:484x310x88 mm

TI-1206S 6 Zones Mixer Amplifier with Mp3

Description
Ideal for small &#038; medium supermarkets, malls, and indoor places like cafe shop to play background musics.
. Standard rack mounted design(1U) with delicate SMT technology.
. Support mp3 / TUNER / Bluetooth remote control function, the remote control distance can reach 8 meters.
. With USB interface and SD card interface, integrated MP3 playback module, with automatic priority playback audio function, digital screen can display the currently playing track of USB.
. Integrated Bluetooth module, support music play via Bluetooth mobile phone.
. Integrated TUNER module with FM radio antenna port.
. 1 EMC inputs, 2 AUX inputs, 4 MIC inputs.
. Channel priority function EMC> MIC1> MIC2, MIC3, AUX1, AUX2.
. Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
. Supports 5 zones outputs, each partition has a separate key and level indication, and the entire area can be set with one key.
. The machine is equipped with level indication, overload and protection indicators.
. The device has good self-protection such as short circuit, overload, and overheating.
.2 kinds of output methods: 100V, 4-16Ω.
.The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy energy-saving and ultra-stable design of Class D digital power amplifiers.
.Wide range voltage power supply: 220V-240V can work normally.
Specifications:
Model:TI-500DTB
Output:4-16Ω, 100V
Output Power:500W
Input Sensitivity &#038; Impedance;
:MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector
:AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector
:EMC Input: 775mV/10KΩ Unbalanced 6.3 connector
Output Sensitivity &#038; Soure Impedance:MIX OUT:1000mV/470Ω Unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response:50~16KHz(+1dB,-3dB)
S/N Rate:MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD:Less than 0.5%(at 1KHz,1/3 Rated Power)
Mute Function:EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Capacity:5 Zones
Channel Crosstalk :≥50dB
Heat Dissipation:The fan starts work when powered on. Winds flank in and out
from the back, can lead to strong cooling effect.
with infinitely variable speed.
Protection:Short circuit, overload and overheat
Power Supply:~220-240V /50Hz
Power Consumption:630W
Dimension:484×260×44mm
Weight:4.1Kg

TI-500DTB 5 Zones Digital Mixer Amplifier with Mp3/TUNER/Bluetooth(Phone Jack Mic Input)

Description
Ideal for small &#038; medium supermarkets, malls, and indoor places like cafe shop to play background musics.
. Standard rack mounted design(1U) with delicate SMT technology.
. Support mp3 / TUNER / Bluetooth remote control function, the remote control distance can reach 8 meters.
. With USB interface and SD card interface, integrated MP3 playback module, with automatic priority playback audio function, digital screen can display the currently playing track of USB.
. Integrated Bluetooth module, support music play via Bluetooth mobile phone.
. Integrated TUNER module with FM radio antenna port.
. 1 EMC inputs, 2 AUX inputs, 4 MIC inputs.
. Channel priority function EMC> MIC1> MIC2, MIC3, AUX1, AUX2.
. Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
. Supports 5 zones outputs, each partition has a separate key and level indication, and the entire area can be set with one key.
. The machine is equipped with level indication, overload and protection indicators.
. The device has good self-protection such as short circuit, overload, and overheating.
.2 kinds of output methods: 100V, 4-16Ω.
.The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy energy-saving and ultra-stable design of Class D digital power amplifiers.
.Wide range voltage power supply: 220V-240V can work normally.
Specifications:
Model:TI-350DTB
Output:4-16Ω, 100V
Output Power:350W
Input Sensitivity &#038; Impedance;
:MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector
:AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector
:EMC Input: 775mV/10KΩ Unbalanced 6.3 connector
Output Sensitivity &#038; Soure Impedance:MIX OUT:1000mV/470Ω Unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response:50~16KHz(+1dB,-3dB)
S/N Rate:MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD:Less than 0.5%(at 1KHz,1/3 Rated Power)
Mute Function:EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Capacity:5 Zones
Channel Crosstalk :≥50dB
Heat Dissipation:The fan starts work when powered on. Winds flank in and out
from the back, can lead to strong cooling effect.
with infinitely variable speed.
Protection:Short circuit, overload and overheat
Power Supply:~220-240V /50Hz
Power Consumption:450W
Dimension:484×260×44mm
Weight:4.0Kg

TI-350DTB 5 Zones Digital Mixer Amplifier with Mp3/TUNER/Bluetooth(Phone Jack Mic Input)

Description
Ideal for small &#038; medium supermarkets, malls, and indoor places like cafe shop to play background musics.
. Standard rack mounted design(1U) with delicate SMT technology.
. Support mp3 / TUNER / Bluetooth remote control function, the remote control distance can reach 8 meters.
. With USB interface and SD card interface, integrated MP3 playback module, with automatic priority playback audio function, digital screen can display the currently playing track of USB.
. Integrated Bluetooth module, support music play via Bluetooth mobile phone.
. Integrated TUNER module with FM radio antenna port.
. 1 EMC inputs, 2 AUX inputs, 4 MIC inputs.
. Channel priority function EMC> MIC1> MIC2, MIC3, AUX1, AUX2.
. Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
. Supports 5 zones outputs, each partition has a separate key and level indication, and the entire area can be set with one key.
. The machine is equipped with level indication, overload and protection indicators.
. The device has good self-protection such as short circuit, overload, and overheating.
.2 kinds of output methods: 100V, 4-16Ω.
.The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy energy-saving and ultra-stable design of Class D digital power amplifiers.
.Wide range voltage power supply: 220V-240V can work normally.
Specifications:
Model:TI-240DTB
Output:4-16Ω, 100V
Output Power:240W
Input Sensitivity &#038; Impedance;
:MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector
:AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector
:EMC Input: 775mV/10KΩ Unbalanced 6.3 connector
Output Sensitivity &#038; Soure Impedance:MIX OUT:1000mV/470Ω Unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response:50~16KHz(+1dB,-3dB)
S/N Rate:MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD:Less than 0.5%(at 1KHz,1/3 Rated Power)
Mute Function:EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Capacity:5 Zones
Channel Crosstalk :≥50dB
Heat Dissipation:The fan starts work when powered on. Winds flank in and out
from the back, can lead to strong cooling effect.
with infinitely variable speed.
Protection:Short circuit, overload and overheat
Power Supply:~220-240V /50Hz
Power Consumption:300W
Dimension:484×260×44mm
Weight:3.8Kg

TI-240DTB Zones Digital Mixer Amplifier with Mp3/TUNER/Bluetooth(Phone Jack Mic Input)

Description
Ideal for small &#038; medium supermarkets, malls, and indoor places like cafe shop to play background musics.
. Standard rack mounted design(1U) with delicate SMT technology.
. Support mp3 / TUNER / Bluetooth remote control function, the remote control distance can reach 8 meters.
. With USB interface and SD card interface, integrated MP3 playback module, with automatic priority playback audio function, digital screen can display the currently playing track of USB.
. Integrated Bluetooth module, support music play via Bluetooth mobile phone.
. Integrated TUNER module with FM radio antenna port.
. 1 EMC inputs, 2 AUX inputs, 4 MIC inputs.
. Channel priority function EMC> MIC1> MIC2, MIC3, AUX1, AUX2.
. Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
. Supports 5 zones outputs, each partition has a separate key and level indication, and the entire area can be set with one key.
. The machine is equipped with level indication, overload and protection indicators.
. The device has good self-protection such as short circuit, overload, and overheating.
.2 kinds of output methods: 100V, 4-16Ω.
.The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy energy-saving and ultra-stable design of Class D digital power amplifiers.
.Wide range voltage power supply: 220V-240V can work normally.
Specifications:
Model:TI-120DTB
Output:4-16Ω, 100V
Output Power:120W
Input Sensitivity &#038; Impedance;
:MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector
:AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector
:EMC Input: 775mV/10KΩ Unbalanced 6.3 connector
Output Sensitivity &#038; Soure Impedance:MIX OUT:1000mV/470Ω Unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response:50~16KHz(+1dB,-3dB)
S/N Rate:MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD:Less than 0.5%(at 1KHz,1/3 Rated Power)
Mute Function:EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Capacity:5 Zones
Channel Crosstalk :≥50dB
Heat Dissipation:The fan starts work when powered on. Winds flank in and out
from the back, can lead to strong cooling effect.
with infinitely variable speed.
Protection:Short circuit, overload and overheat
Power Supply:~220-240V /50Hz
Power Consumption:160W
Dimension:484×260×44mm
Weight:3.7Kg

TI-120DTB  5 Zones Digital Mixer Amplifier with Mp3/TUNER/Bluetooth(Phone Jack Mic Input)

Description
. Standard rack mounted design (1U), exquisite SMT process design.
. With MP3 function module, adopt LCD display, support playback of various file formats in USB disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card,
support mobile phone Bluetooth function, and can display song names.
. Support mp3/TUNER/Bluetooth remote control function.
. 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
. Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2.
. Each channel has independent volume control function; master input has volume control and treble/bass control.
. MIC1-4 supports balanced input, built-in 48V phantom power.
. The machine is equipped with level indication, overload and protection indicator.
. The device has good self-protection such as short circuit, overload and overheating.
. Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
. Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers.
. Support backup power supply 24V switching without delay (optional).
Model:T-B500DTB
Output:4-16Ω, 100V
RMS Power:500W
Input Sensitivity &#038; Impedance:MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal;AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal;
EMC input: 775mV/10KΩ unbalanced European connection terminal
Output Sensitivity &#038; Source Impedance:MIX OUT:1000mV/470Ω, unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
Frequency Response:80Hz~16KHz(+1dB,-3dB)
SNR:MIC1, 2, 3:66dB; AUX1, 2:80dB
THD:Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control:MIC 1 priority over MIC2-4, AUX1-2 audio input; EMC has highest priority
Channel Crosstalk: ≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection:Over-heat, overload, short circuit
Power Supply:AC ~220-240V /50Hz
Power consumption:650W
Dimension:484×295×44mm
Weight: 5.6 Kg

Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input) T-B500DTB

Description
. Standard rack mounted design (1U), exquisite SMT process design.
. With MP3 function module, adopt LCD display, support playback of various file formats in USB disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card,
support mobile phone Bluetooth function, and can display song names.
. Support mp3/TUNER/Bluetooth remote control function.
. 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
. Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2.
. Each channel has independent volume control function; master input has volume control and treble/bass control.
. MIC1-4 supports balanced input, built-in 48V phantom power.
. The machine is equipped with level indication, overload and protection indicator.
. The device has good self-protection such as short circuit, overload and overheating.
. Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
. Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers.
. Support backup power supply 24V switching without delay (optional).
Model:T-B350DTB
Output:4-16Ω, 100V
RMS Power:350W
Input Sensitivity &#038; Impedance:MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal;AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal;
EMC input: 775mV/10KΩ unbalanced European connection terminal
Output Sensitivity &#038; Source Impedance:MIX OUT:1000mV/470Ω, unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
Frequency Response:80Hz~16KHz(+1dB,-3dB)
SNR:MIC1, 2, 3:66dB; AUX1, 2:80dB
THD:Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control:MIC 1 priority over MIC2-4, AUX1-2 audio input; EMC has highest priority
Channel Crosstalk: ≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection:Over-heat, overload, short circuit
Power Supply:AC ~220-240V /50Hz
Power consumption:500W
Dimension:484×295×44mm
Weight: 5.4 Kg

Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input) T-B350DTB

Description
. Standard rack mounted design (1U), exquisite SMT process design.
. With MP3 function module, adopt LCD display, support playback of various file formats in USB disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card,
support mobile phone Bluetooth function, and can display song names.
. Support mp3/TUNER/Bluetooth remote control function.
. 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
. Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2.
. Each channel has independent volume control function; master input has volume control and treble/bass control.
. MIC1-4 supports balanced input, built-in 48V phantom power.
. The machine is equipped with level indication, overload and protection indicator.
. The device has good self-protection such as short circuit, overload and overheating.
. Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
. Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers.
. Support backup power supply 24V switching without delay (optional).
Model:T-B240DTB
Output:4-16Ω, 100V
RMS Power:240W
Input Sensitivity &#038; Impedance:MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal;AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal;
EMC input: 775mV/10KΩ unbalanced European connection terminal
Output Sensitivity &#038; Source Impedance:MIX OUT:1000mV/470Ω, unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
Frequency Response:80Hz~16KHz(+1dB,-3dB)
SNR:MIC1, 2, 3:66dB; AUX1, 2:80dB
THD:Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control:MIC 1 priority over MIC2-4, AUX1-2 audio input; EMC has highest priority
Channel Crosstalk: ≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Over-heat, overload, short circuit
Protection:
Power Supply:AC ~220-240V /50Hz
Power consumption:300W
Dimension:484×295×44mm
Weight: 5.1 Kg

Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input) T-B240DTB

Description
. Standard rack mounted design (1U), exquisite SMT process design.
. With MP3 function module, adopt LCD display, support playback of various file formats in USB disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card,
support mobile phone Bluetooth function, and can display song names.
. Support mp3/TUNER/Bluetooth remote control function.
. 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
. Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2.
. Each channel has independent volume control function; master input has volume control and treble/bass control.
. MIC1-4 supports balanced input, built-in 48V phantom power.
. The machine is equipped with level indication, overload and protection indicator.
. The device has good self-protection such as short circuit, overload and overheating.
. Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
. Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers.
. Support backup power supply 24V switching without delay (optional).
Model:T-B120DTB
Output:4-16Ω, 100V
RMS Power:120W
Input Sensitivity &#038; Impedance:MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal;AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal;
EMC input: 775mV/10KΩ unbalanced European connection terminal
Output Sensitivity &#038; Source Impedance:MIX OUT:1000mV/470Ω, unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
Frequency Response:80Hz~16KHz(+1dB,-3dB)
SNR:MIC1, 2, 3:66dB; AUX1, 2:80dB
THD:Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control:MIC 1 priority over MIC2-4, AUX1-2 audio input; EMC has highest priority
Channel Crosstalk: ≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Over-heat, overload, short circuit
Protection:
Power Supply:AC ~220-240V /50Hz
Power consumption:180W
Dimension:484×295×44mm
Weight: 4.5 Kg

Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input) T-B120DTB

Description
. Standard rack mounted design (1U), exquisite SMT process design.
. With MP3 function module, adopt LCD display, support playback of various file formats in USB disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card,
support mobile phone Bluetooth function, and can display song names.
. Support mp3/TUNER/Bluetooth remote control function.
. 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
. Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2.
. Each channel has independent volume control function; master input has volume control and treble/bass control.
. MIC1-4 supports balanced input, built-in 48V phantom power.
. The machine is equipped with level indication, overload and protection indicator.
. The device has good self-protection such as short circuit, overload and overheating.
. Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
. Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers.
. Support backup power supply 24V switching without delay (optional).
Model:T-B60DTB
Output:4-16Ω, 100V
RMS Power:60W
Input Sensitivity &#038; Impedance:MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal;AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal;
EMC input: 775mV/10KΩ unbalanced European connection terminal
Output Sensitivity &#038; Source Impedance:MIX OUT:1000mV/470Ω, unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
Frequency Response:80Hz~16KHz(+1dB,-3dB)
SNR:MIC1, 2, 3:66dB; AUX1, 2:80dB
THD:Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control:MIC 1 priority over MIC2-4, AUX1-2 audio input; EMC has highest priority
Channel Crosstalk: ≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Over-heat, overload, short circuit
Protection:
Power Supply:AC ~220-240V /50Hz
Power consumption:120W
Dimension:484×295×44mm
Weight: 4.3 Kg

Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input) T-B60DTB

Description
Model:T-500DTBV
Output: 4-16Ω, 100V
RMS Power:500W
Input Sensitivity &amp; Impedance
:MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector;
:AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector;
:EMC input; 775mV/10KΩ, unbalanced 6.3 connector
Output Sensitivity &amp; Source Impedance:MIX OUT; 1000mV/470Ω, unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz;
:Treble: ±10dB at 10KHz
Frequency Response:50Hz~16KHz(+1dB,-3dB)
SNR: MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD: Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control;
:MIC 1 priority over MIC2-4, AUX1-2 audio input;
:EMC has highest priority
Channel Crosstalk Attenuation:≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection:Over-heat, overload, short circuit
Power Supply:AC ~220-240V /50Hz
Power Consumption:650W
Dimension:484x300x44mm
Weight:4.1 Kg

T-B500DTBV Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input)

Description
Model:T-350DTBV
Output: 4-16Ω, 100V
RMS Power:350W
Input Sensitivity &amp; Impedance
:MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector;
:AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector;
:EMC input; 775mV/10KΩ, unbalanced 6.3 connector
Output Sensitivity &amp; Source Impedance:MIX OUT; 1000mV/470Ω, unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz;
:Treble: ±10dB at 10KHz
Frequency Response:50Hz~16KHz(+1dB,-3dB)
SNR: MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD: Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control;
:MIC 1 priority over MIC2-4, AUX1-2 audio input;
:EMC has highest priority
Channel Crosstalk Attenuation:≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection:Over-heat, overload, short circuit
Power Supply:AC ~220-240V /50Hz
Power Consumption:500W
Dimension:484x300x44mm
Weight:4.0 Kg

T-B350DTBV Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input)

Description
Model:T-240DTBV
Output: 4-16Ω, 100V
RMS Power:240W
Input Sensitivity &amp; Impedance
:MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector;
:AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector;
:EMC input; 775mV/10KΩ, unbalanced 6.3 connector
Output Sensitivity &amp; Source Impedance:MIX OUT; 1000mV/470Ω, unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz;
:Treble: ±10dB at 10KHz
Frequency Response:50Hz~16KHz(+1dB,-3dB)
SNR: MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD: Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control;
:MIC 1 priority over MIC2-4, AUX1-2 audio input;
:EMC has highest priority
Channel Crosstalk Attenuation:≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection:Over-heat, overload, short circuit
Power Supply:AC ~220-240V /50Hz
Power Consumption:300W
Dimension:484x300x44mm
Weight:3.8 Kg

T-B240DTBV Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input)

Description
Model:T-120DTBV
Output: 4-16Ω, 100V
RMS Power:120W
Input Sensitivity &amp; Impedance
:MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector;
:AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector;
:EMC input; 775mV/10KΩ, unbalanced 6.3 connector
Output Sensitivity &amp; Source Impedance:MIX OUT; 1000mV/470Ω, unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz;
:Treble: ±10dB at 10KHz
Frequency Response:50Hz~16KHz(+1dB,-3dB)
SNR: MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD: Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control;
:MIC 1 priority over MIC2-4, AUX1-2 audio input;
:EMC has highest priority
Channel Crosstalk Attenuation:≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection:Over-heat, overload, short circuit
Power Supply:AC ~220-240V /50Hz
Power Consumption:180W
Dimension:484x300x44mm
Weight:3.7 Kg

T-120DTBV Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phone Jack Mic

Description
Model:T-60DTBV
Output: 4-16Ω, 100V
RMS Power:60W
Input Sensitivity &amp; Impedance
:MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector;
:AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector;
:EMC input; 775mV/10KΩ, unbalanced 6.3 connector
Output Sensitivity &amp; Source Impedance:MIX OUT; 1000mV/470Ω, unbalanced RCA connector
Tone;
:Bass: ±10dB at 100Hz;
:Treble: ±10dB at 10KHz
Frequency Response:50Hz~16KHz(+1dB,-3dB)
SNR: MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD: Less than 0.5%( at 1KHz, 1/3 rated power)
Mute Control;
:MIC 1 priority over MIC2-4, AUX1-2 audio input;
:EMC has highest priority
Channel Crosstalk Attenuation:≥50dB
Heat Dissipation:Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection:Over-heat, overload, short circuit
Power Supply:AC ~220-240V /50Hz
Power Consumption:120W
Dimension:484x300x44mm
Weight:3.5 Kg
